| PRACTICAL 2: TOPOGRAPHIC PROFILES AND GEOLOGICAL PROFILES. | |
|
||||||||||||||
| At completion of this practicals you will be able 1/ to construct accurate vertical cross sections using structural contours, 2/ to determine the location underground of the intersection between two geological surfaces (for instance intersection between a fault and a particular bedding plane), and 3/ to determine the plunge and plunge direction of that intersection. | ||||||||||||||||
| Topographic Profile | Geological Profile | The art of cross-sectioning | ||||||||||||||
|
|
|
||||||||||||||

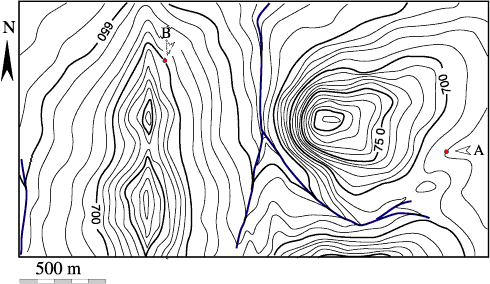

| Exercices 1 and 2 | Exercice 3 and 4. | |||||||||||||||
|
|
|||||||||||||||
