PRACTICAL 1: TOPOGRAPHIC CONTOURS, STRUCTURAL CONTOURS AND GEOLOGICAL MAPS.

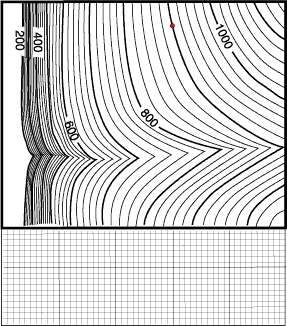

d/ Contruct the form line of the plane 150 - 30SW passing through the red dot.

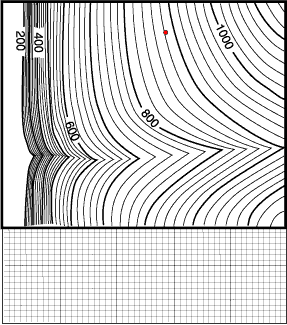

e/ Contruct the form line of the plane 150 - 90 passing through the red dot.

f/ Contruct the form line of the plane 150 - 00 passing through the red dot.

Click here to download a pdf file of Exercises d, e and f.
