| sedimentary basins | Rift basins - Structural aspects - | ||||||||||||||

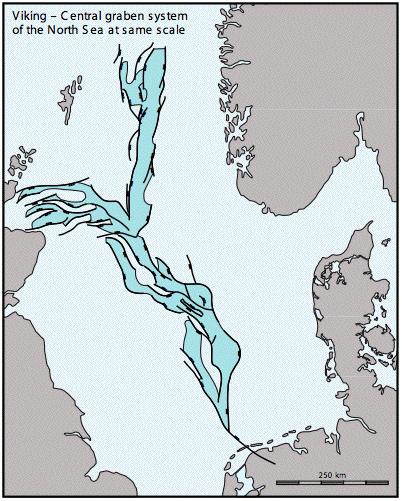

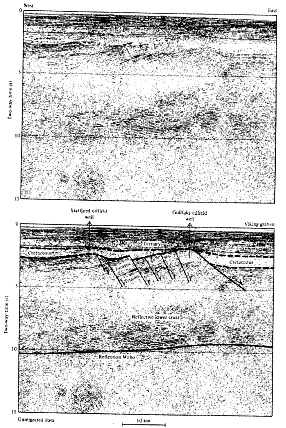

| Classical example: Viking Graben in the North Sea : Triassic and Jurassic sedimentary strata have been rotated between subparallel high-angle listric faults. The faults can be traced deep into the crust and are not bounded by a detachment surface. At the time when these faults formed they reached a depth at which the crust was hot enough to deform by ductile flow, causing sub-horizontal reflections in the lower crust. |
|||||||||||||||
 |
 |

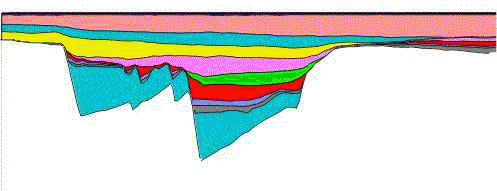

Present day section | |||||||||||||
 |
|||||||||||||||

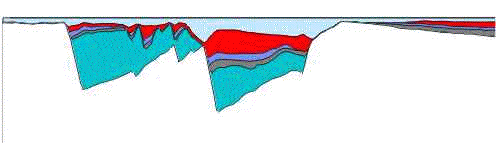

| Backstripping of post-rift stratigraphy | |||||||||||||||
 |
|||||||||||||||

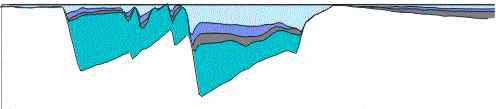

| Bathymetry at a key point in the syn-rift stratigraphy | |||||||||||||||
 |
|||||||||||||||
| © Geological Survey of Denmark & Greenland | |||||||||||||||
| © Alastair Beach Associate | |||||||||||||||
|
|
 |
|
|
|
 |
 |
 |
 |
 |
||
