STRUCTURAL GEOLOGY
Shear Zones: An Atlas

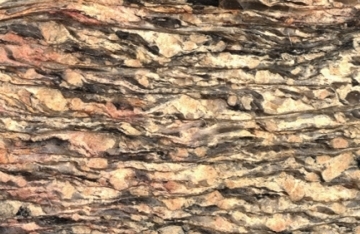

CSC' fabric in a mylonite. Can you guess the kinematic?

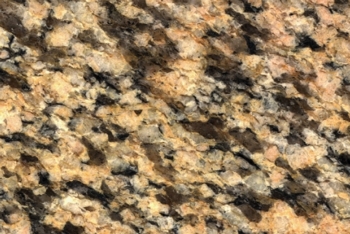

Same rock much less deformed. Note the coarser grain size.

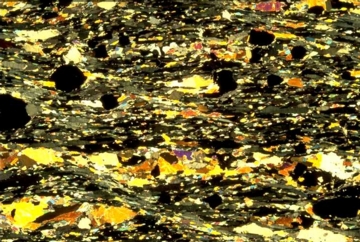

Eclogitic shear zone under the microscope. Note the S plane (parallel to long side of the picture) and the C plane dipping to the right. Kinematic ?

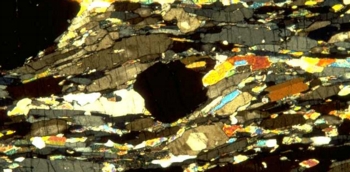

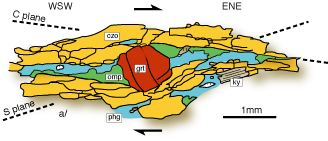

Details of the left picture showing a sigma pressure shadow. Explanation on the line drawing below.

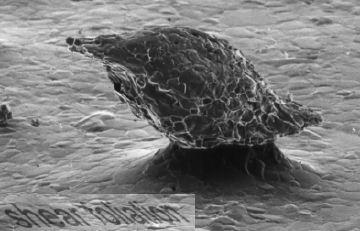

Kinematic criteria (sigma pressure shadow) under the electronic microscope.
