Lecture 5: Structural Geology of Convergent Plate Boundaries

Slide 9 of 22

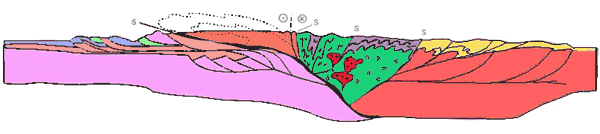

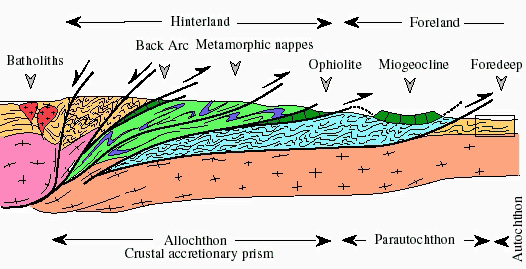

Idealized sections through a collisional orogen

Foredeep

|

Fold & Thrust Belt

|

Metamorphic zone

|

Arc and accretated terranes

|

Hinterland fold & thrust belt
